Topping E70 Velvet DAC

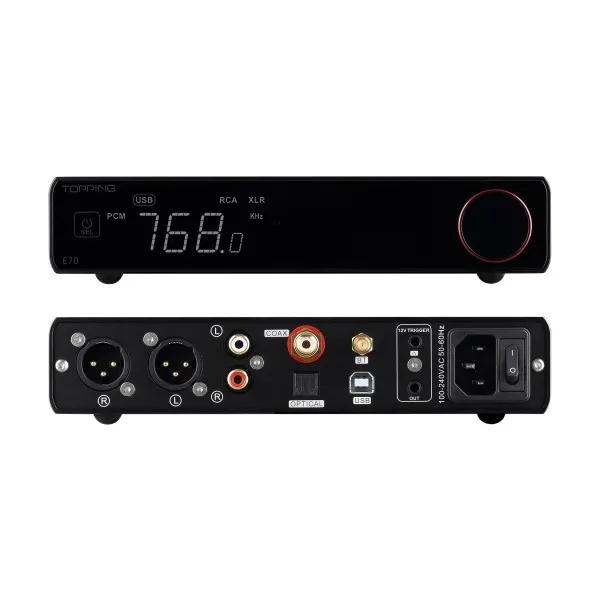

The E70 is the latest model of E-series DAC product. The DAC chips adopts ESS AKM flagship AK4191 + AK4499 EX and the Xu316 of XMOC, which reaches the high performance of THD+ N<0.00006%; the product has USB optical, coaxial, Bluetooth 5.1 input and RCA + balanced XLR output.
E70 velvet has the certification HI- Res Audio wireless and LDAC. It uses Qcc5125 chipset to Support LDAC/AAC/SBC/AptX/AptX LL/ AptX, adaptive protocol by Bluetooth 5.1. To get even better sound quality from Bluetooth, we abandon the built-in DAC of QCC5125 and connect it-s digital signal to AK4499EX to decode.
The optical and coaxial input of E70 VELVET support up to 24vit/192kHz audio, which is suitable for digital turntables, disk player, set-top boxes, so that traditional equipment can also give a new sound.
In addition to the DAC mode with a fixed output, the E70 VELVET also has a preamplifer mode. In this mode, you can control the output volume from -999dB to 0db by the knob or by the remote control. This will provide great convenience when connected to a power amplifier or monitor speakers, and also help leave the budget of a preamplifiers.
We understand that in addition to the more versatile XLR 4V and RCA 2v outputs, there are extensive needs for XLR 5V and RCA 2.5v. E70 VELEVET adds options to set this to meet a wider range of needs. When XLR 4v and RCA 2v are selected , more device can be adapted; when XLR 5v and RCA 2.5V are selected the performance will be pushed from extreme to more extreme.
The USB input of the E70 VELVET has a wide range of compatibility: Windows 10, 11 and MAC, Linux, iOS, Android can be plug and play. Only Windows ASIO applications you will still need to install drivers and set it up. The USB hardware is based on the newest XMOS XU316 and Thesycon custom driver, which is stable and reliable option.
The E70 VELVET is equipped with a 12V Trigger interface, which has both active control (Trigger out) and passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the E70 VELVET cam ne turned on and off synchronously with other device equipped with a 12V Trigger interface. it is especially convenient when used amplifiers, especially the L70.
