Niimbus US 5 Pro

Add Your Review
Niimbus US 5 PRO has a sophisticated preamp function to drive direct power amplifiers or active speakers in addition to your headphones.

The Niimbus US 5 PRO is the improved successor to the famous Niimbus US 4 and US 4+ headphone amplifiers. The US 5 and US 5 PRO versions have the same brilliant technology, the US 5 PRO also offers a finely graduated volume control in 256 precise steps.

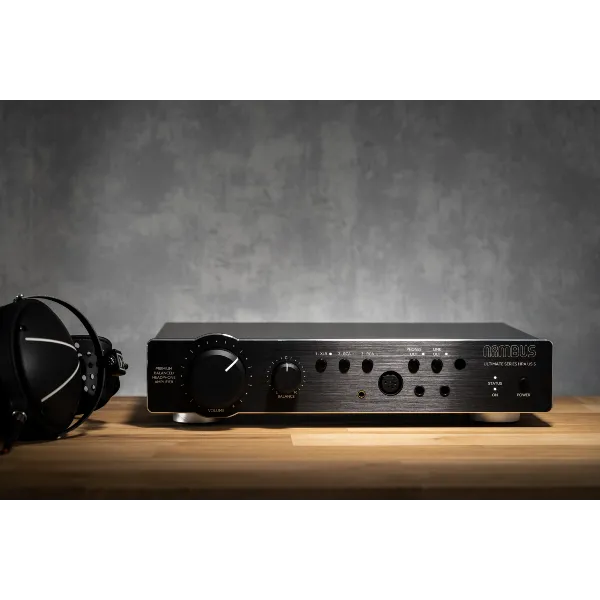

Enjoy a compact and fantastic sounding headphone amplifier and a premium preamp. The Niimbus US 5 PRO has a sophisticated preamp function to drive direct power amplifiers or active speakers in addition to your headphones. This gives you two high-end devices in one! The US 5 series has powerful, noise-free and perfect-sounding circuits to drive any dynamic and planar headphone in the best possible way. The headphone outputs and the rear line outputs can be activated/deactivated using a switch on the front.

Versatile remote control

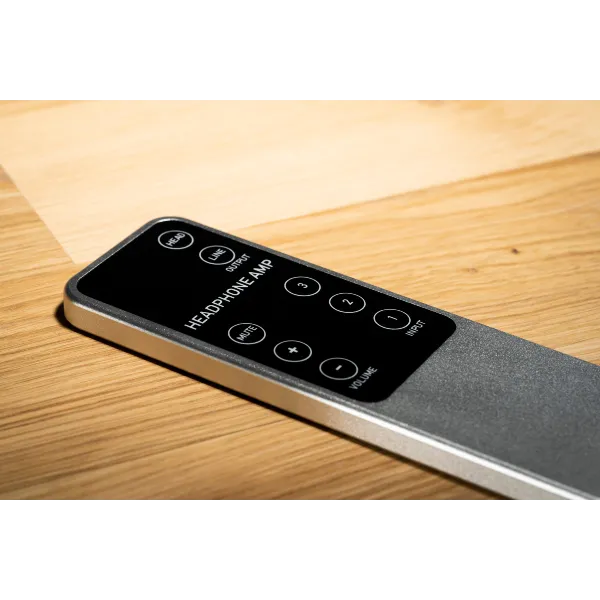

For undisturbed listening pleasure, almost all functions can be controlled via the elegantly designed remote control milled from one piece.Infrared gives you access to the motoriaed volume control, mute, input selection, headphone and line-out control.

Thanks to its incomparable technology, the Niimbus US 5 PRO is one of the most powerful headphone amplifiers on the market. It is characterised by:

Lowest noise - due to a very small internal gain. As a result, the inherent noise of the amplifiers is inaudible.

High output voltage - due to 50 volt internal operating voltage. Therefore ideally suited for high-impedance headphones.

High output power - through powerful amplifiers that can deliver far more power than even the most demanding headphone can need. Therefore ideally suited for headphones with low impedances and also Planar.

High damping factor - due to the lowest output impedance. Therefore ideally suited to control even the most difficult headphones without influencing them with a guarantee for an uncompromising frequency response.


£5140

Specifications

The Niimbus US 5 PRO offers:

Perfect volume control in 256 steps via reed relay

Remote control for input selection, output selection, volume, mute

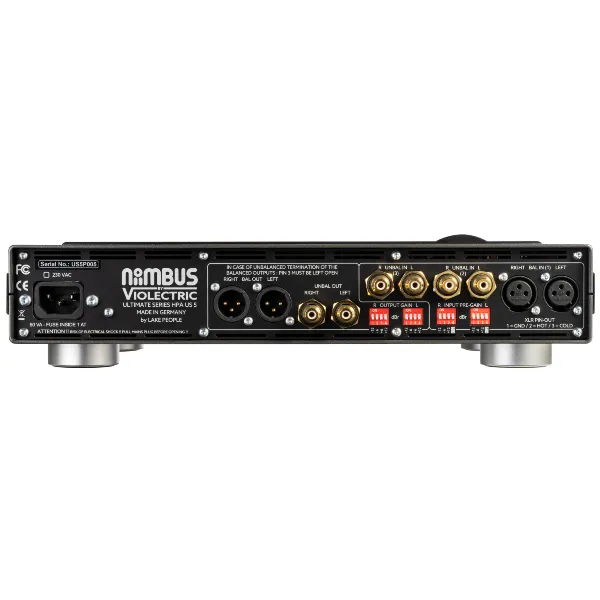

3 analog stereo inputs, 2 x unbalanced via RCA, 1 x balanced via XLR

- 18 … +24 dB pre-gain for the perfect adjustment of the US 5 PRO between source and headphones

Motorised volume control and balance control (manual)

4 powerful amplifiers, 7000 mW Pmax in 50 ohms and 32 V RMS in 600 ohms

Monitoring of the KH outputs with regard to DC voltage and overload

Headphone and line outputs individually selectable

1 balanced headphone output with 4-pin XLR, 4.4 mm Pentaconn, 2 unbalanced outputs with 6.3 mm jack

2 x line outputs, 1 x unbalanced via RCA, 1 x balanced via XLR

Adaptation of the line outputs to the following devices in the range +/- 12 dB

2 toroidal transformers, > 50,000 uF filter capacitance

Remote Control

Compatible With

Reviews (0)

Documentation

The Niimbus US 5 PRO offers:

Perfect volume control in 256 steps via reed relay

Remote control for input selection, output selection, volume, mute

3 analog stereo inputs, 2 x unbalanced via RCA, 1 x balanced via XLR

- 18 … +24 dB pre-gain for the perfect adjustment of the US 5 PRO between source and headphones

Motorised volume control and balance control (manual)

4 powerful amplifiers, 7000 mW Pmax in 50 ohms and 32 V RMS in 600 ohms

Monitoring of the KH outputs with regard to DC voltage and overload

Headphone and line outputs individually selectable

1 balanced headphone output with 4-pin XLR, 4.4 mm Pentaconn, 2 unbalanced outputs with 6.3 mm jack

2 x line outputs, 1 x unbalanced via RCA, 1 x balanced via XLR

Adaptation of the line outputs to the following devices in the range +/- 12 dB

2 toroidal transformers, > 50,000 uF filter capacitance

Remote Control
